Dinsmore Welding and Fabrication

🇺🇸 United States, Colorado

1984

11-50 people

Manufacturer/Service Company

Dinsmore Welding and Fabrication is a custom steel fabricator and contract manufacturer based in Kersey, PA, established in 1984. With 11-50 employees, the company specializes in comprehensive job shop services for industrial and commercial applications across Pennsylvania and Eastern Ohio. They operate a 35,000 to 40,000 square foot facility equipped with overhead cranes, large capacity machinery, a sandblasting bay, and a paint booth. Dinsmore Welding and Fabrication offers a wide range of services including custom steel fabrication, structural steel fabrication, welding (MIG, TIG, mobile welding), and heavy equipment repair. Their cutting capabilities include CNC machining, laser cutting, plasma cutting, and waterjet cutting. They also provide metal forming, bending, boring, and coating services, including being an Authorized LINE-X Dealer. Key products include metal tanks, stair systems, metal railings, catwalks, ladders, fire escapes, and industrial piping. The company holds ASME and AWS certifications, demonstrating their commitment to quality and industry standards. They offer both in-shop and on-site custom-building services, handling both production runs and custom one-off projects.

Product customizationOffers full customization for design and features.

Industry association memberMember of ASME, AWS association.

Established brandFounded in 1984, with over 20 years of industry experience.

Contact

************

Products

0

RS 255 Plate Roll - 10' X 1" plate

0·0 reviews

Featured behind the Plate roll is our Niagra 350 Ton Press Brake 12'L.

CNC Mill 26" W X 52" L X 28"H capacity

0·0 reviews

Manufacturing of Copper/Steel Heat Exchanger

0·0 reviews

Plate Rolling

0·0 reviews

Here at Dinsmore Welding and Fabrication we can now roll up to 10 ft. of 1" thick steel. Click below to see specifications [DAVI Plate Roller Specifications](/files/2014/12/img036.pdf)

Faccin Bar Stock Bender

0·0 reviews

6" X 6" X 5/8" capacity Click below to see specifications [Faccin Angle Roll Specifications](/files/2014/12/img036.pdf)

Mobile Welding and Fabrication

0·0 reviews

Do you need a job done but can't quite make it to the shop? Give us a call and we'll be more than happy to bring our services to you in Saint Marys, PA. Call us today at 814-885-6407 and we can set up a time convenient to your schedule.

Line-Boring

0·0 reviews

On site Line Boring and Machining or In Shop Service available.

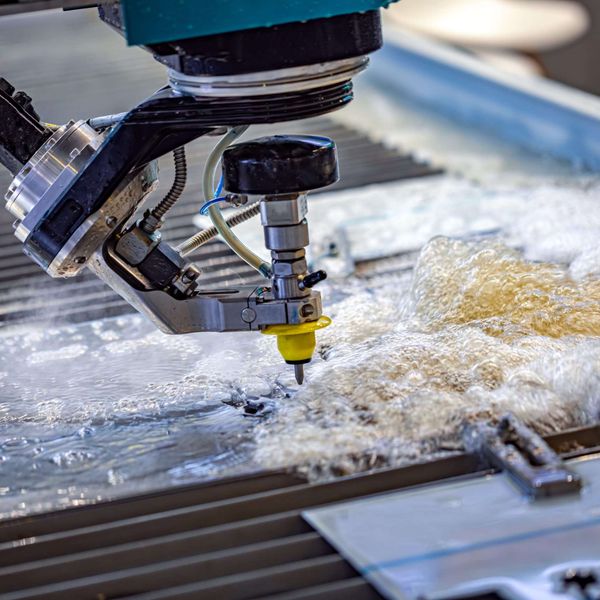

Water Jet Cutting

0·0 reviews

Flow Waterjet Shapecutting System 6' x 12' x 1' CapacityOur FlowWaterjet™ Systems can cut virtually any shape in a single step with edge quality that generally requires no secondary finishing or expensive tooling. The Waterjet system is the most productive solution for cutting a wide range of materials from 1/16 inch to over 10 inches thick. Using abrasive waterjet technology, we can cut complex shapes at very close tolerances using high pressure water up to 60,000 psi. Because the Waterjet cuts without heat, it leaves a clean edge without shearing, no loss of material, and does not alter the physical properties of the material being cut. Whether you require high volume, short run, or prototype parts, Dinsmore Welding can machine parts to your exact specifications with extremely fast turnaround times; in some cases, same day service is available. Don't lose valuable time waiting for replacement parts for production equipment.

Plate Roll 5' of 1/4"

0·0 reviews

8" DIA

Plasma Burning/Cutting

0·0 reviews

Used to cut steel and other metals, plasma cutting uses ionized gas that is delivered via a high velocity jet. The gas then conducts electricity from the torch to start cutting whatever type of material you are currently working on. The metal or other material is melted and the high velocity gas blows it away, resulting in cutting of the material. If you are looking to cut steel or non-ferrous material less than 1" thick, plasma cutting may be a great option!

HAAS SL40 CNC LATHE

0·0 reviews

Specifications: Max Bar Capacity......6" Chuck Size .............16" Max. Swing Over Front Apron.....40" Max. Swing Over Cross Slide......25" Max. Turning Diameter.............32" Max Turning Length.................84" Travels: X Axis...................32" Z Axis....................84" Spindle Bore............4.62" Spindle Nose............A2-8 Spindle Speed...........2400 RPM Main Motor.............55 HP Turret Capacity.........10 Stations Tailstock Taper..........MT #5 Machine Dimensions...190"L X 92"W X 89"H Machine Weight.........25,000 lbs

Trumpf TruLaser 3030 CNC Laser

0·0 reviews

The TruLaser 3030 boasts of high flexibility and profitability: In particular it cuts mild steel with profitably at all sheet thicknesses. The TruDisk 3001 solid-state laser enables the processing of non-ferrous metals and, in addition, provides you with an extra productivity benefit when it comes to thin sheets. Proven functions such as the automatic nozzle changer provide for minimum downtimes. Profitable mild steel processing at all sheet thicknesses High flexibility due to processing of tubes and of non-ferrous metals Production advantages in the thin-sheet range The one-cutting-head strategy and automatic nozzle changer result in minimized downtimes Maximum energy efficiency Specifications Laser Capacity: 4000W Max. Material Thickness (Mild Steel): 0.79" (Stainless):0.59" (Aluminum):0.39" X-Axis Travel: 121" Y-Axis Travel: 61" Z-Axis Travel: 4.5" Number of Tables: 2 Table Size: 5' x 10' Maximum Workpiece Weight:1562 Lbs Max Positioning Speed (Simultaneous X&Y-Axes):5500 IPM

Similar suppliers you may like

Design and Fabrication, Inc.

🇺🇸 United States

1994

5-10 people

Manufacturer/Service Company

Established brand

Product customization

Industry association member

Shipments

Key customer

WILD BOAR

Description

Design and Fabrication, Inc. is a professional contract manufacturer and service company based in Upper Sandusky, Ohio. Founded in 1994, the company operates from a 7,200 square foot facility that includes a dedicated machine shop and fabrication area. They specialize in the custom design and fabrication of turnkey machines, assembly machinery, and specialized fixtures, including gauging, inspection, and lift assist stations. The company provides comprehensive engineering services, integrating mechanical systems with electrical, pneumatic, and hydraulic controls. Their in-house capabilities feature precision CNC machining, vertical milling, turning, and grinding, alongside fabrication services such as MIG and TIG welding, plasma cutting, and drilling. Design and Fabrication, Inc. also develops custom control systems, offering PLC programming and analog controls for various industrial applications. With a focus on quality and meticulous detail, they serve as a job shop for custom parts, prototypes, and complex electro-mechanical systems, utilizing materials like steel and aluminum to meet exact client specifications.

Advanced Welding

🇺🇸 United States

1991

Fewer than 5 people

Manufacturer/Service Company

Established brand

Product customization

Small batch production

Shipments

Key customer

TECNI ELECTRONIC

Description

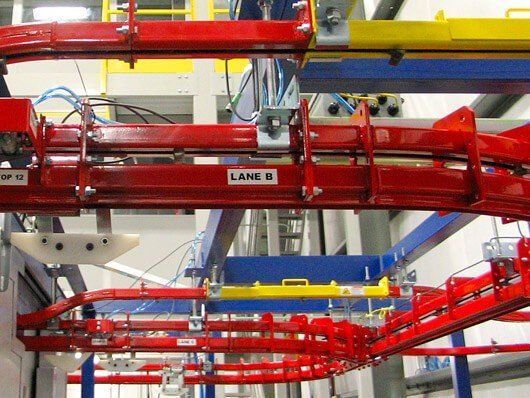

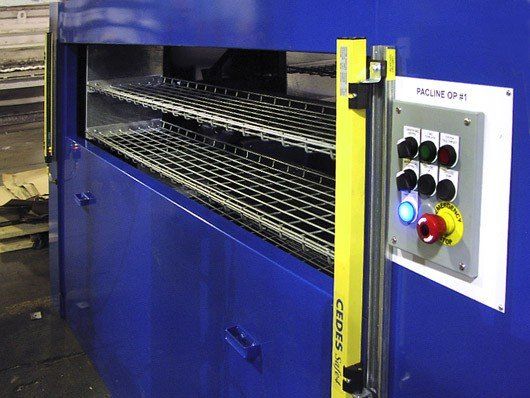

Advanced Welding, established in 1991 and now under the ownership of Pacline Conveyors, is a custom manufacturer and service company based in Franklin, US. Specializing in high-quality custom fabrication and welding, the company offers a comprehensive range of services including TIG, MIG, and SMAW welding, water jet cutting, tube bending, vertical milling, and powder coating. They work with diverse materials such as steel, stainless steel, aluminum, plastic, ceramic, and glass. Advanced Welding provides complete fabrication, machining, assembly, finishing, and testing services, catering to prototypes and production runs of all sizes. With a focus on expanding manufacturing capabilities, they serve the automotive, aerospace, and general manufacturing industries. The company employs fewer than 5 people and has an annual sales revenue between $1 million and $4.9 million.
